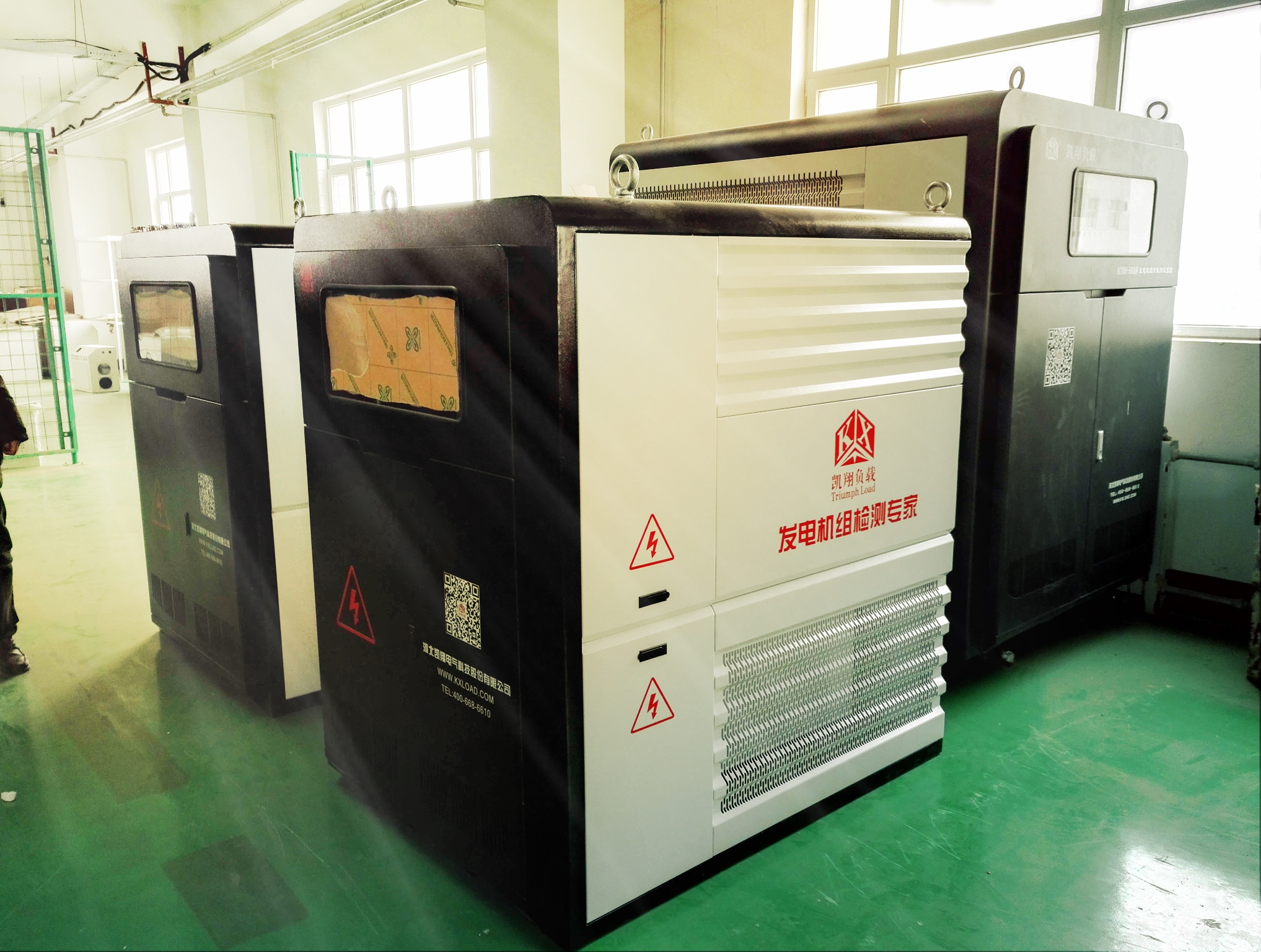

Emergency Stop Dummy Load Bank Grey With 1650 Mm * 1350 Mm * 1680 Mm Size

  • 1
  • 2

Brand Name : Kaixiang

Model Number : AC380V-600kW

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 30 Sets / Month

Delivery Time : Within 42 working days

Packaging Details : Packaged in wooden cases

Model : AC380V-600kW

Rated power : 600 kW

Voltage : AC380V

PF(Power Factor) : 1

Display Precision : 0.5 class

Colour : Grey

Contact Now

AC380V-600kW Dummy Load Bank With 60 HZ And 1650mm*1350mm*1680mm

Introduction

Triumph load are available in stationary type for permanent installation or portable type with fork lift pocket base, castors. Larger load banks, are based on an ISO container construction. Special finishes including custom paint colors and stainless steel casings can be supplied.

AC380V-600kW Dummy Load Bank can simulate the real working conditions and provides a rigorous test regime for power supplies from 1kW to 60MW. Resistive, inductive(reactive),capacitive or combined load banks can be customised for any application.

Load banks can be supplied for most powers, voltages, frequencies and sizes. Multi-voltage load banks are also available for operation over a large voltage range. At the same time, It can operate in parallel with more than two units.

Application

1. Battery system testing

2. Load optimization in prime power applications

3. Factory tesT of turbines

4. factory test of engine generator sets

5. To reducewet stacking problems

6. Periodic excercising of stand-by engine generator sets

Technical specification

Technical Parameters
Rating Voltage/Frequency AC 380V/50Hz, 3 phase 4 Line
Max Load Power Resistive Load: 600kW
Load Step Resistive Load:11 steps; 1,2,2,5,10,10,20,50,100,200,200kW
Power Factor 1
Load Tolerance(each step) ±5%
Load Tolerance(overall) ±3%
Display Precision 0.5 class
Control Power Supply External 380VAC, 3phase 4wire 50Hz,
Wire Connection

Load Power Supply Input——Copper bar (star connection)

Control power supply input——Wiring row
Communication Interface RS485, RS232
Insulation Class F
Working Mode Continuous Working
Cooling Forced air cooling,Horizontal inlet air,Horizontal outlet
Transportation Hoisting, there are lifting lug in top of case and wheel castors in bottom
Color Orange(RAL2008)
Dimension

Approximately; 1650mm*1350mm*1680mm

(Width *Length *Height)
Operating Environment Parameter
Ambient Temperature -10℃～+50℃
Relative Humidity ≤95%
Altitude ≤2500 meters
Atmospheric Pressure 86～106kPa

Main features

(1) Overheat Alarm Indicator:When the unit is overheating, the corresponding warning lights up, load bank gives alarm.

(2) Over-voltage Alarm Indicator:When load bank is under over-voltage protection, the corresponsive light turns on and gives alarm.

(3) Temperature Display: display real time temperature.

(4) Measuring meter: display testing data.

(5) Control mode selector switch: [Local] use panel switch manually operated,and point to [Intelligent] can be operated via PC software. Two methods are mutually exclusive modes of operation; please make sure the current operation mode is in accordance with the corresponding mode.

(6) Fan Power Supply: push the button, the indicator lights up, fans will work.

(7) Load Confirm: Master load switch, when the switch is pressed, the yellow indicator lights up, load bank will load / unload according to a preset power loading.

(8) Emergency stop: In case of emergency, press this switch, immediately stop loading. After resolving the emergency problem, clockwise rotary switch, unlock, continues to load.

(9) Power setting switch: totally 16 switches:1,2,2,5,10,10,20,50,100,100,200,200,200,200,200,200kW press the corresponding switches, and press the < Load Confirm >.

(10) Fault: red fault indicator lights up, and with alarm, the load bank will be in protection.

Emergency Stop Dummy Load Bank Grey With 1650 Mm * 1350 Mm * 1680 Mm Size
